Quick Details

  • Condition: New
  • Type: Raymond Mill
  • Motor Type: AC Motor
  • Power(W): 133.5KW
  • Capacity(t/h): 2~15
  • Place of Origin: Guangxi, China (Mainland)
  • Brand Name: Guikuang
  • Model Number: powder pulverizer machine
  • Dimension(L*W*H): 8.5*7.5*8.2
  • Weight: 18 t
  • Certification: ISO9001:2008 and BV
  • Warranty: One year excluding wearing parts
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application: Marble, calcite, limestone, feldspar,gypsum etc. various mineral
  • Production Line: Can design whole production line or part line
  • Particle Size: 80~1500 mesh according to customer's requirement
  • Quality: Best quality of raymond mill in china
  • Sales Volume: 7000 cases in china and world
  • Technical Force: Strong research and development ability
  • Shippment: Fast delivery once order confirm
  • Running: Can confirm continuous operation
  • Wearing Parts Abrasion: Perfect abrasive resistance
  • Capacity: Higher capacity than other raymond mill based on same power

Packaging & Delivery

Packaging Details Standard exporting packing or as per customer's requirement
Delivery Time 7-30 working days once order confirmed
40 Years Research & Production Experience + 7000 Cases =Top Choice
Guikuang GK1280 Micro Powder Pendulum Roller Grinding Mill  specilize in large capacity with lower power consumption
Guikuang GK1280  Micro Powder Pendulum Roller Grinding Mill

GK1280 Improved Grinding Mill, high output and low consumption, is specially designed by our technicians according to market development demand .This is medial type between 4R and 5R..

Guikuang Micro Powder Pendulum Roller Grinding Mill  Features:
1, Strong Grinding Force:
2, Expanding Grinding Area:
3, Strong ability of shoveling material:
4, High Classification Accuracy:
5, Dual Cyclone Collector:
6, Large Transmission Capability:
7,The rest powder is collected by sack ,so the workshop will be clean.
Guikuang Micro Powder Pendulum Roller Grinding Mill  Models Optional According to Capacity &Granularity&Mineral Type
ModelMax Feeding Size(mm)Product Fineness(mesh)Capacity(t/h)Central Shaft Speed(r/min)Inner Diameter of Ring(mm)Grinding Roll Size(OD*Height)mmTotal Weight(t)Total Power(kw)
GK17203080~6005.5~3290φ1720φ510*30048375
GK15003080~6002.5~24108φ1500φ450*30032282
GK12802080~6002~15150φ1280φ370*24018133.5
5R41283080~6002.2~20112φ1270φ410*28029.6220.5
5R41243080~6002~18112φ1270φ410*24029205
GYM97202080~6001.5~7.5150φ970φ320*20014.597.5
4R32202080~6001~7150φ970φ320*20014.797.5
5R41193080~3252~6.5105φ1270φ410*19028156
4R32142080~3251~3145φ970φ320*1601481.2
4R3216B2080~3251~3150φ970φ320*1601481.2
2R26131560~3250.3~3180φ760φ260*1304.331.7
LG992010600~15001.2~2.5116φ1250φ365*24028.5140.5
LG99010600~15001~2.2120φ960φ320*20014.594.7

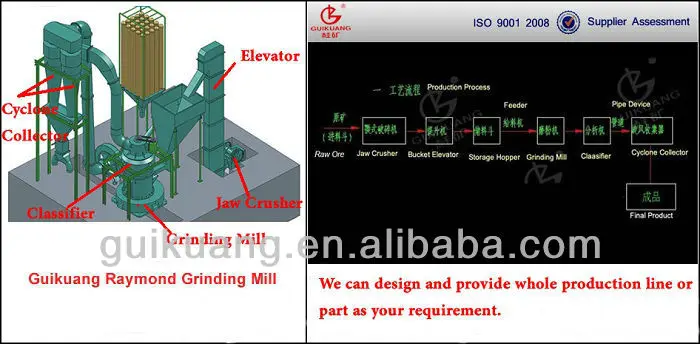

Guikuang Micro Powder Pendulum Roller Grinding Mill   Production Process Line for Various Mineral
Guikuang Micro Powder Pendulum Roller Grinding Mill  is produced strictly under the standard of  ISO 9001:2008  to guarantee best quality.

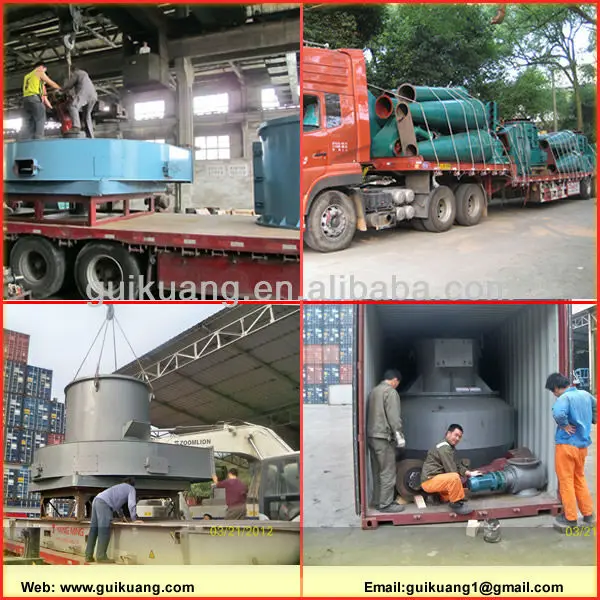

Guikuang Micro Powder Pendulum Roller Grinding Mill  will confirm the machine to pack and ship safelly
Guikuang Micro Powder Pendulum Roller Grinding Mill   will send engineer to assisst the mill's installation and operation.
ISO9001:2008
Certification of Enterprise Credit Grade

Why choose us:

A:     Quality Guarantee: Since 1973 , we have installed 7000 cases in china and world ,and more and more customers are chosing our mill.

B:   Strong Technology: We have 30 engineers, who are skillful and with more than 20 years.

C:   High Reputation:We assure the quality, quantity, price and timely delivery each time. We say what we can do and we do what we say.
